600KW modular centralized liquid-cooled load bank

The liquid cooled load bank developed by Kaixiang Technology for green data center greatly reduces the power consumption, has the advantage s of low noise,fast heat conduction ,constant power,AC and DC applications for all-purpose,etc.,proiding users with a more energy-saving and efficient solution.

Load Voltage：

415V

Frequency：

50/60Hz

Capacity：

605kW

Power Factor：

Consult Now

Introduction
Main features
Technical Data
Certificate

Home > Products > Liquid Cooled Load Bank > Liquid Cooled Load Bank

Introduction

When testing high-power electrical equipment (data centers, energy storage PCS, diesel generator sets, ultra-fast charging piles, etc.), air-cooled loads often suffer from high noise, poor heat dissipation, and difficult expansion-especially challenging for long-term indoor operation.

Our 600kW modular centralized liquid-cooled load is purpose-built for these scenarios-a single unit covers 600kW, and two units in parallel can easily expand to 1.2MW, flexibly matching all needs from small-power single testing to MW-level parallel operation.

Main Features

Installation & Deployment-Flexible & Space-Saving		Stable Operation
Centralized liquid-cooling architecture occupies far less floor space than air-cooled equipment of equivalent power, suitable for indoor enclosed spaces such as data centers and energy storage stations. Modular power units allow expansion by simply adding modules without infrastructure modifications-fast on-site parallel connection, plug-and-use.		Long-term full-load operation without derating, with better PUE control. The whole unit is designed for continuous load conditions with minimal load fluctuation, making test data more reliable and helping certifications pass in a single run.

Maintenance & Overhaul-Simple & Low-Cost		Commercial Value-Multi-Purpose, Rapid Response
Modular structure allows faulty units to be replaced independently without whole-system shutdown, reducing maintenance time. Centralized liquid-cooling piping is simple; routine maintenance only requires regular checks, significantly reducing O&M staff workload and lowering total cost of ownership.		Covers diverse scenarios such as data centers and energy storage, with a single device meeting multiple testing tasks. Standardized mass production ensures stable supply and high cost-performance, helping you seize the initiative in the high-power testing market.

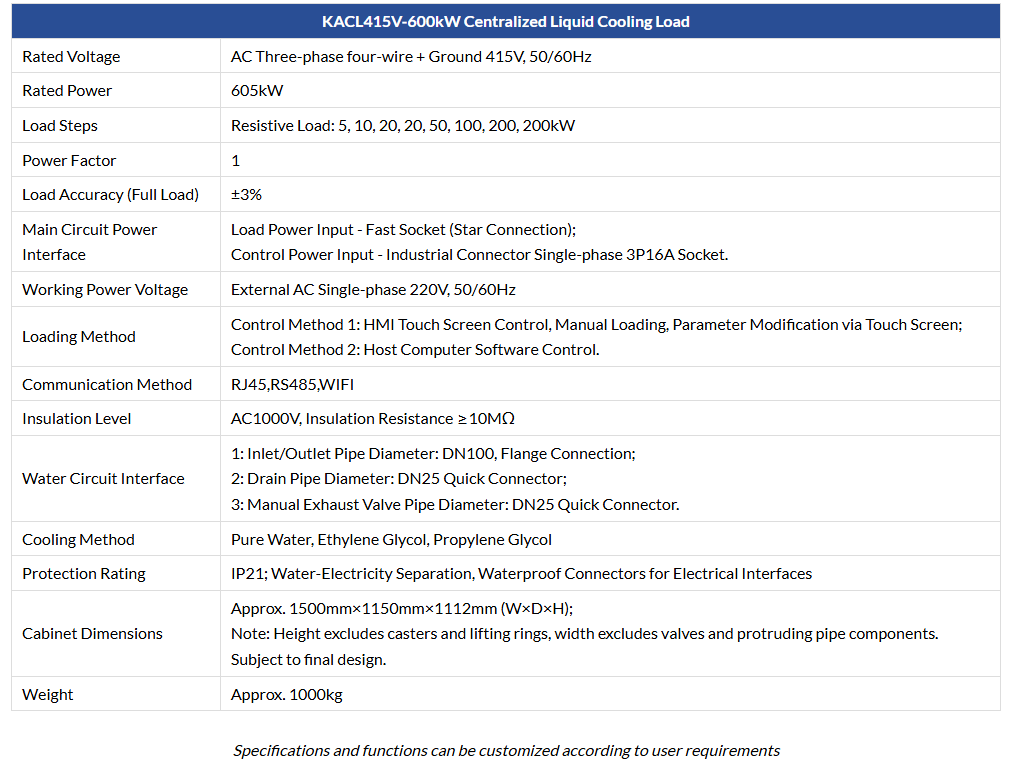

Technical Data
