Containerized Load Banks | Testing Equipment for High-Capacity Outdoor Generator Sets and Power Stations

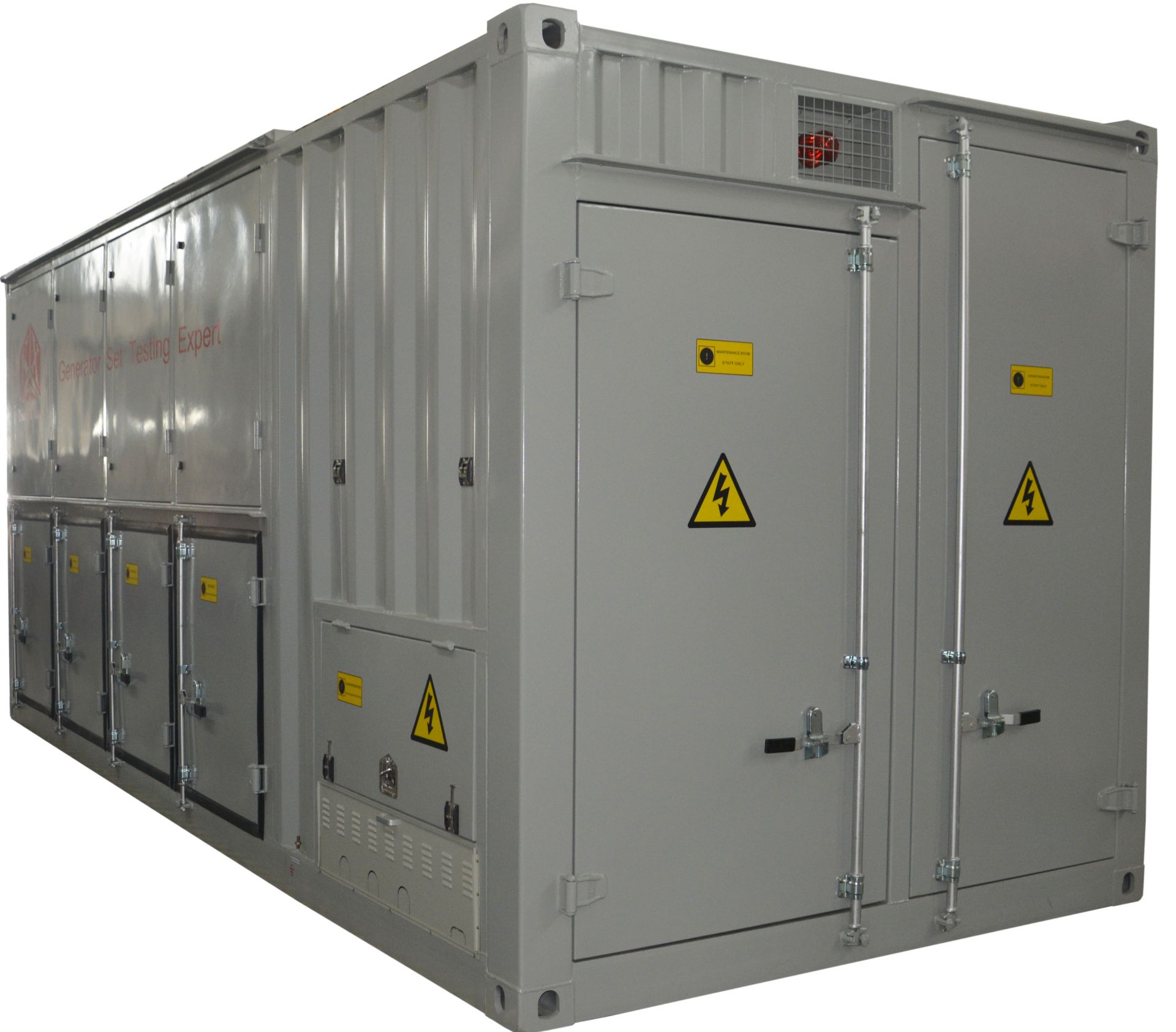

High-power power acceptance for outdoor power stations, mines, offshore platforms and emergency power projects requires testing equipment resistant to harsh environments. Containerized load bank is the ideal option. A load bank is integrated inside a standard container with built-in cooling, control and protection systems. No extra machine room is required. After transportation and cable connection, the load bank can conduct full-power tests for diesel generators, photovoltaic energy storage stations and high-voltage power systems during factory inspection and on-site acceptance.


100kW load bank

Our containerized load bank ranges from 100kW to multi-megawatt levels. The heavy-duty container enclosure is rainproof, dustproof and anti-corrosive for high temperature, high humidity and dusty outdoor conditions. Modular resistor units inside the load bank can be controlled independently, supporting step loading and step load change tests to simulate dynamic power fluctuations. Equipped with intelligent PLC and touch screen, the load bank supports local operation and remote online monitoring, automatically recording voltage, current, power and temperature data.

Safety protection is the key advantage of containerized load bank. Multi-stage temperature protection, over/under voltage protection, short-circuit warning and emergency stop button are equipped. If internal temperature rises continuously, the cooling system accelerates automatically. When reaching threshold, the load bank unloads automatically to protect equipment and power source. The reinforced cooling system keeps temperature rise under control under long-time full-load operation for generator endurance evaluation.

Overseas mining, oil & gas and island power projects set strict reliability requirements for backup power. Full-load endurance test with load bank before handover verifies stable generator output under continuous and fluctuating loads, preventing power outages after operation. Our containerized load bank can be customized for overseas voltage, frequency and IP rating, with international certification documents to facilitate customs clearance and local inspection.


High Voltage Load Bank

With years of experience in load bank manufacturing, we provide one-stop services including design, production, factory pre-test and on-site commissioning. Standard load bank units are available, and custom requirements on power, dimension and control logic are acceptable. For overseas EPC contractors, power operators and generator manufacturers, our containerized load bank delivers stable solutions for high-power power testing and ensures safe delivery of global power projects.
